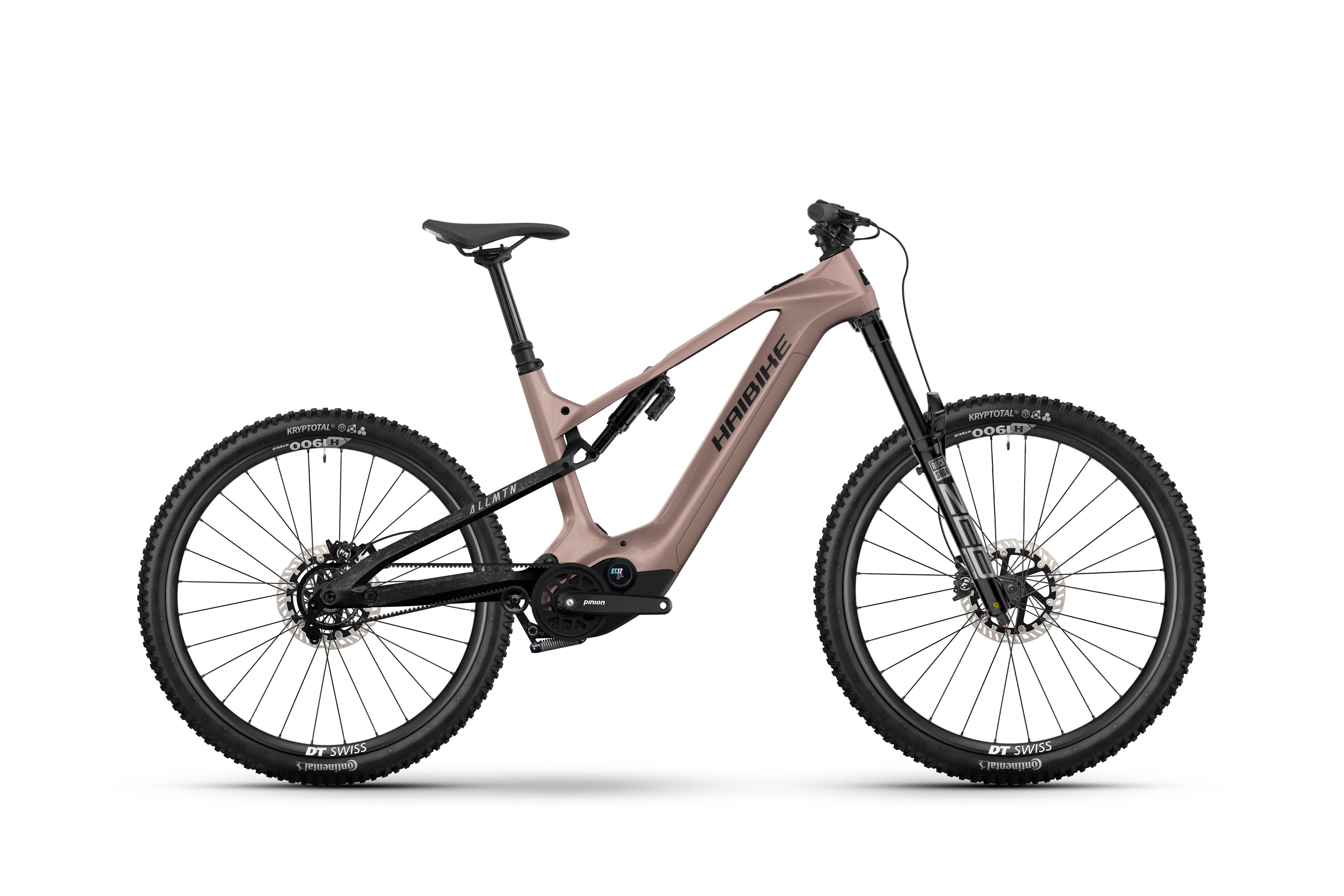

2025 Haibike ALLMTN CF 11 TRN/IQ
Couldn't load pickup availability
Description
Climb Higher, Ride Smarter
The ALLMTN CF 11 TRN/IQ is all about next-level riding, whether you're exploring our trails here at Comrie Croft or heading for big mountain adventures across Scotland. It's built to make the steepest climbs easier and the descents even more fun—all with less fuss and more flow.

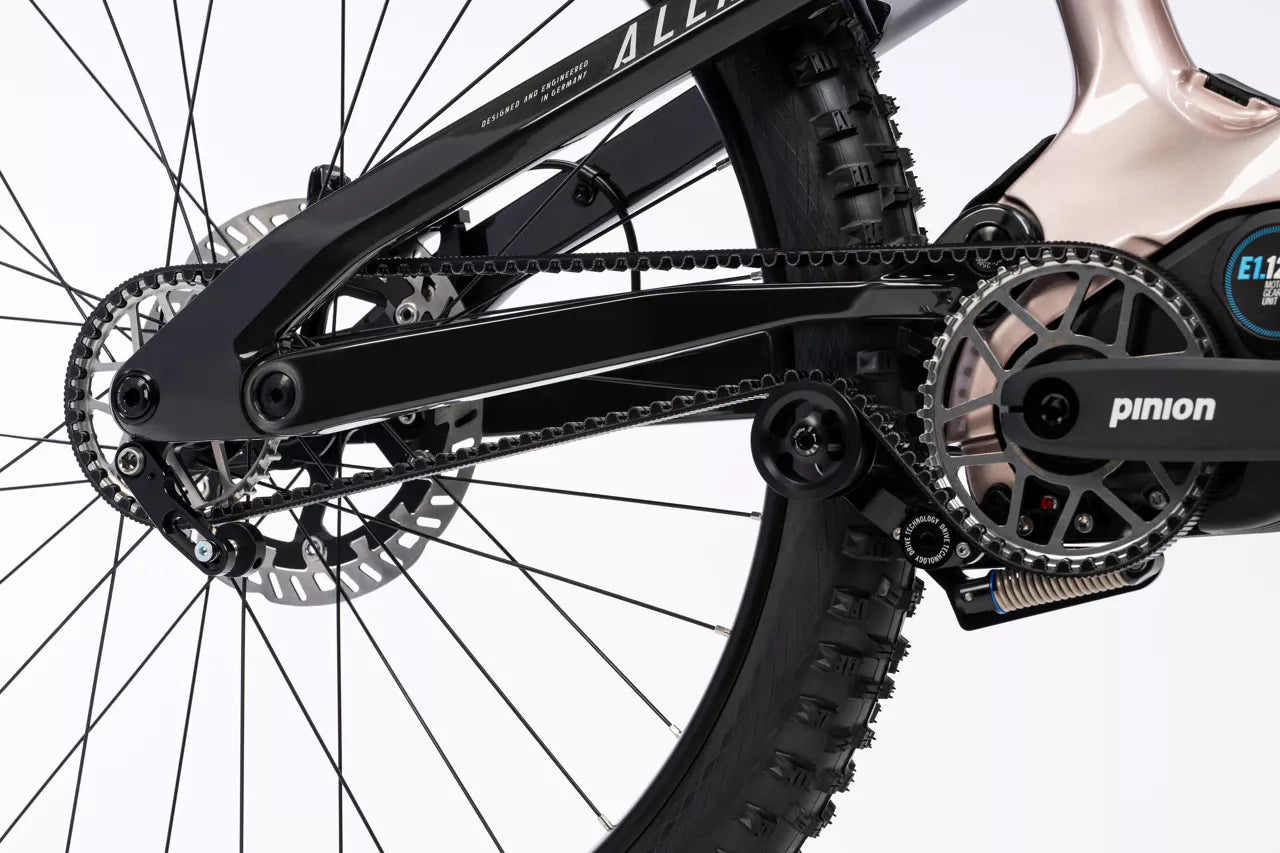

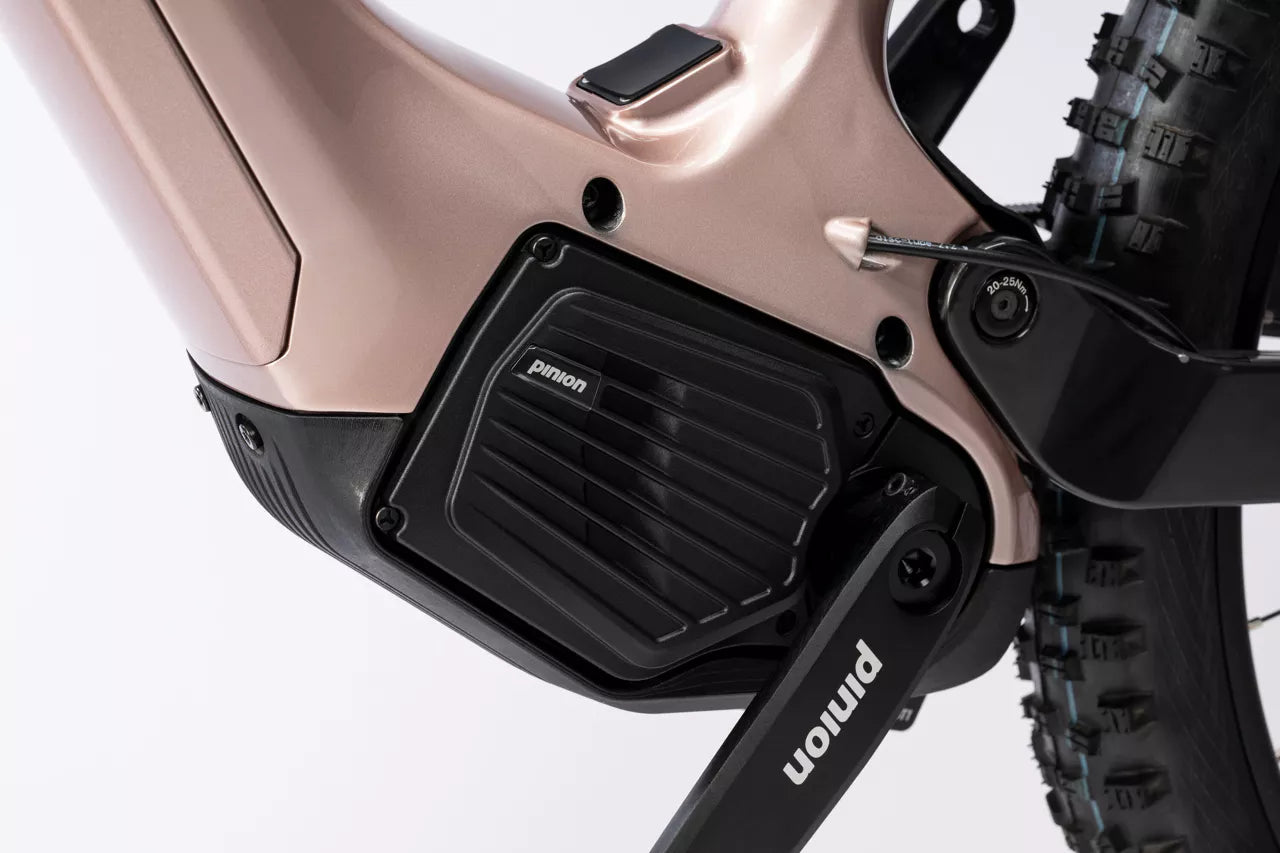

At its core is the Pinion Motor.Gearbox.Unit (MGU)—a clever bit of kit that combines the motor and 12-speed gearbox in one compact system. That means no derailleur, no cassette, and no constant fiddling—just smooth, automatic-style shifting, even while you're pedalling hard uphill.
With 160mm of suspension front and rear, a playful mullet wheel setup, and a powerful 800Wh battery, the CF 11 is ready for long climbs, big descents, and everything in between. And when it's time to slow things down, the Magura disc brakes keep you confidently in control.

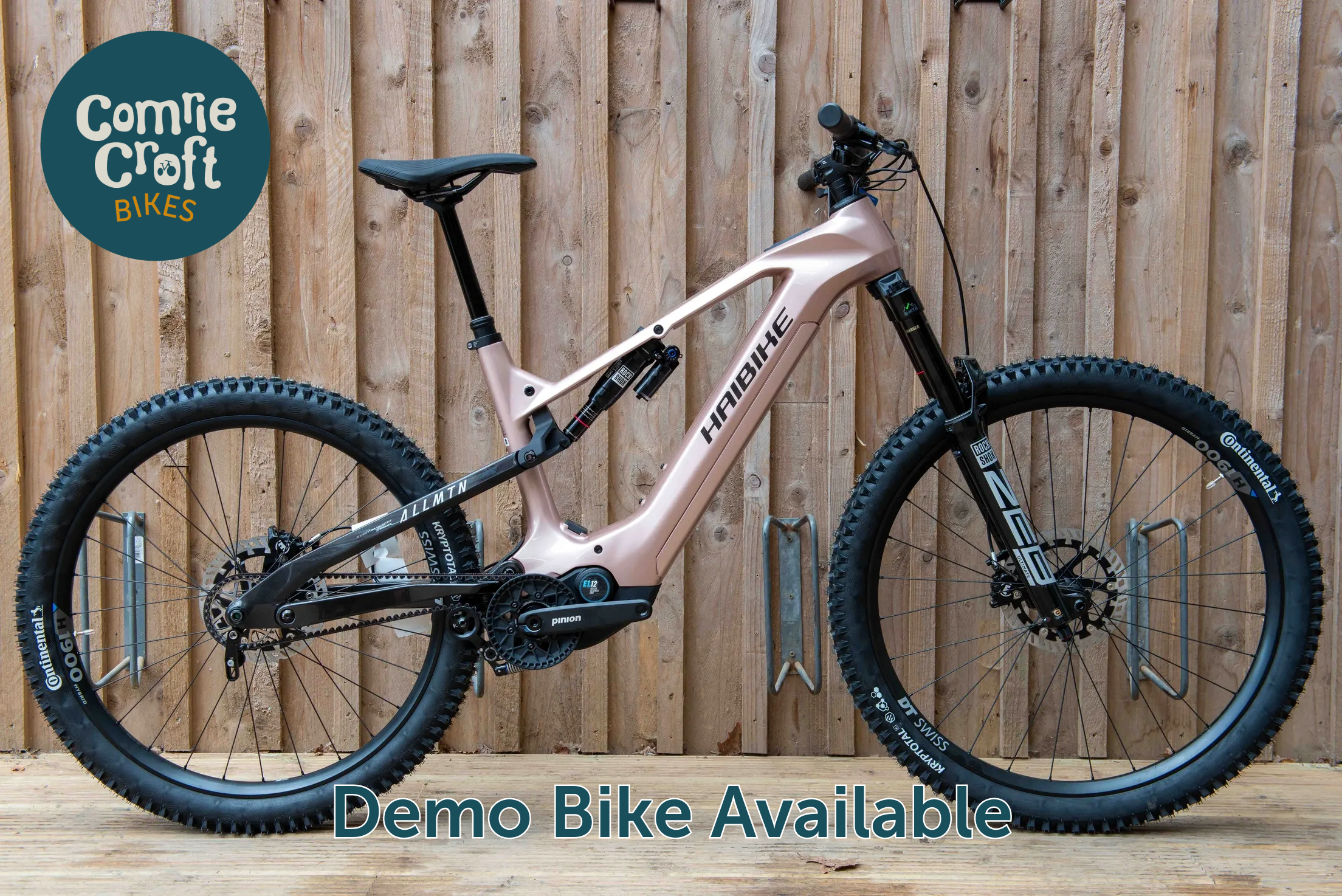

Sound good? Come and try it out on our own trail centre network—right from the shop door. And if you buy or collect in-store, we’ll set up the suspension for your riding style and include a free 6-week tune-up to keep everything running sweet.
Big climbs, smooth shifting, no distractions—the future of eMTB is here.
FEATURES
-
Smart.Shift Technology for advanced electronic shifting
-
Precise and seamless gear changes – even under heavy load
-
Quick, intelligent shifting performance, even on steep climbs
-
Low wear and minimal maintenance design
-
Durable belt drive system – no chain to rust or stretch
-
Sealed transmission protects against wind and water
-
Exceptionally low maintenance – oil change only every 10,000 km (6,213 miles)
-
New kinematic suspension setup for improved performance
-
Optimized shock position for better handling and aesthetics
-
Crafted in Europe from ultra-light carbon
-
Clean, radical frame design for a sleek and modern look
-
Enhanced riding freedom through advanced engineering
Part | Specification |
---|---|
Frame Material | Carbon |
Frame | High Carbon Uni, High shape, 42 cm |
Max Permissible Weight | 135 kg |
Motor | Pinion E1.12 Motor Gearbox Unit, 85 Nm |
Battery | Pinion InTube 800Wh |
Charger | Pinion FIT Standard Charger 48V |
Display | Pinion FIT Master Node Display + Remote Pure |
Maximum Support Speed | 25 km/h |
Gearbox | Pinion Gearbox, 12-speed |
Shifter | Pinion Triggershift Smart Shift TE1 E-Trigger |
Crankset | Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165 |
Chain | Gates Belt Carbon Drive Belt CDX, 120T |
Cassette | Gates Carbon Drive CDX Sprocket, 9 Spline |

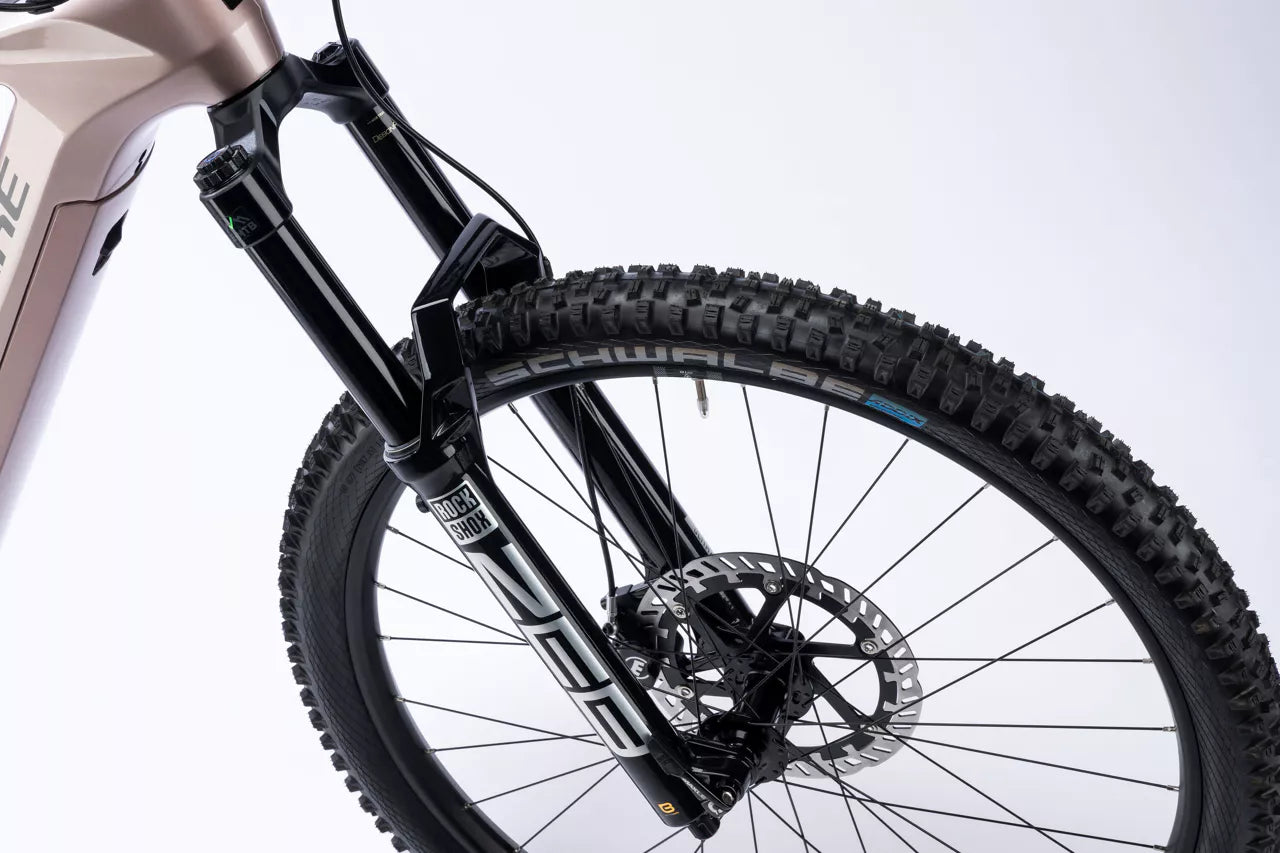

Front Fork | Rockshox ZEB Ultimate Charger 3.1 RC2, DebonAir 160 mm |

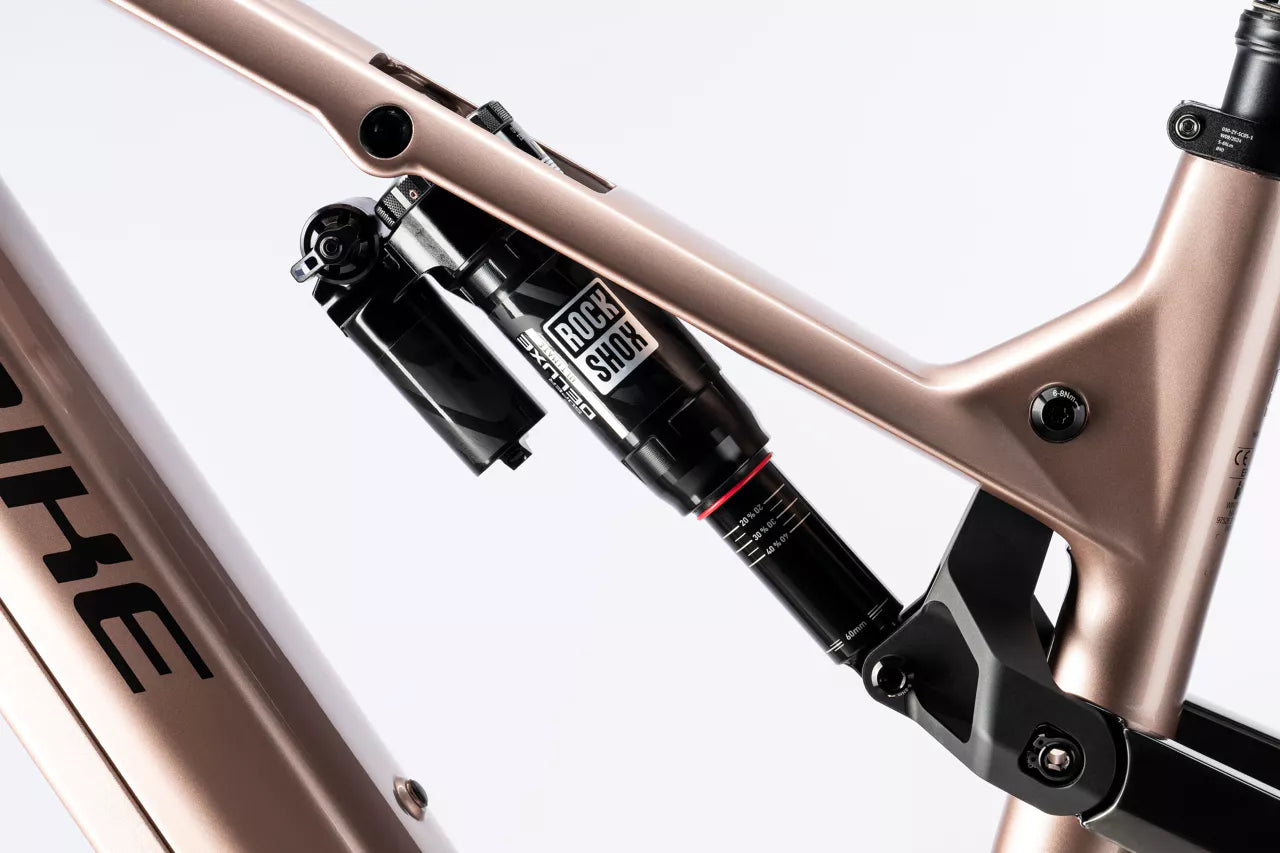

Rear Shock | Rockshox Super Deluxe Ultimate RC2T 230x60mm, DebonAir |
Travel | 160 mm Front & Rear |
Front Brake | Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm |
Rear Brake | Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm |
Grips | XLC MTB Grip Set VLG-1751D2 |
Handlebar | Haibike Flat bar TheBar++ Dia. 31.8 mm |
Pedals | VP VPE-527 Alloy w/ Reflector |
Saddle | Selle Royal Vivo 1216HRN |
Seat Post | Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 150 mm |
Wheel Size | Front: 29", Rear: 27.5" |
Tyres | Continental Kryptotal-Fr, Enduro Soft, foldable skin SL 60-622 |
Geometry | S (40) | M (42) | L (44) | XL (49) |
---|---|---|---|---|
Wheel Size | 29 / 27.5" | 29 / 27.5" | 29 / 27.5" | 29 / 27.5" |
Body Height (cm) | 158 - 170 | 168 - 179 | 177 - 189 | 187 - 199 |
Seattube Length (mm) | 400 | 420 | 440 | 490 |
Toptube Length (mm) | 560 | 592 | 624 | 656 |
Headtube Length (mm) | 100 | 110 | 120 | 130 |
Seattube Angle (°) | 77.7 | 77.7 | 77.7 | 77.6 |
Headtube Angle (°) | 64 | 64 | 64 | 64 |
Stack (mm) | 617 | 626 | 635 | 650 |
Reach (mm) | 425 | 455 | 485 | 513 |
BB Drop (mm) | 10 | 10 | 10 | 10 |
Wheelbase (mm) | 1203 | 1237 | 1271 | 1304 |
Chainstay Length (mm) | 440 | 440 | 440 | 440 |
