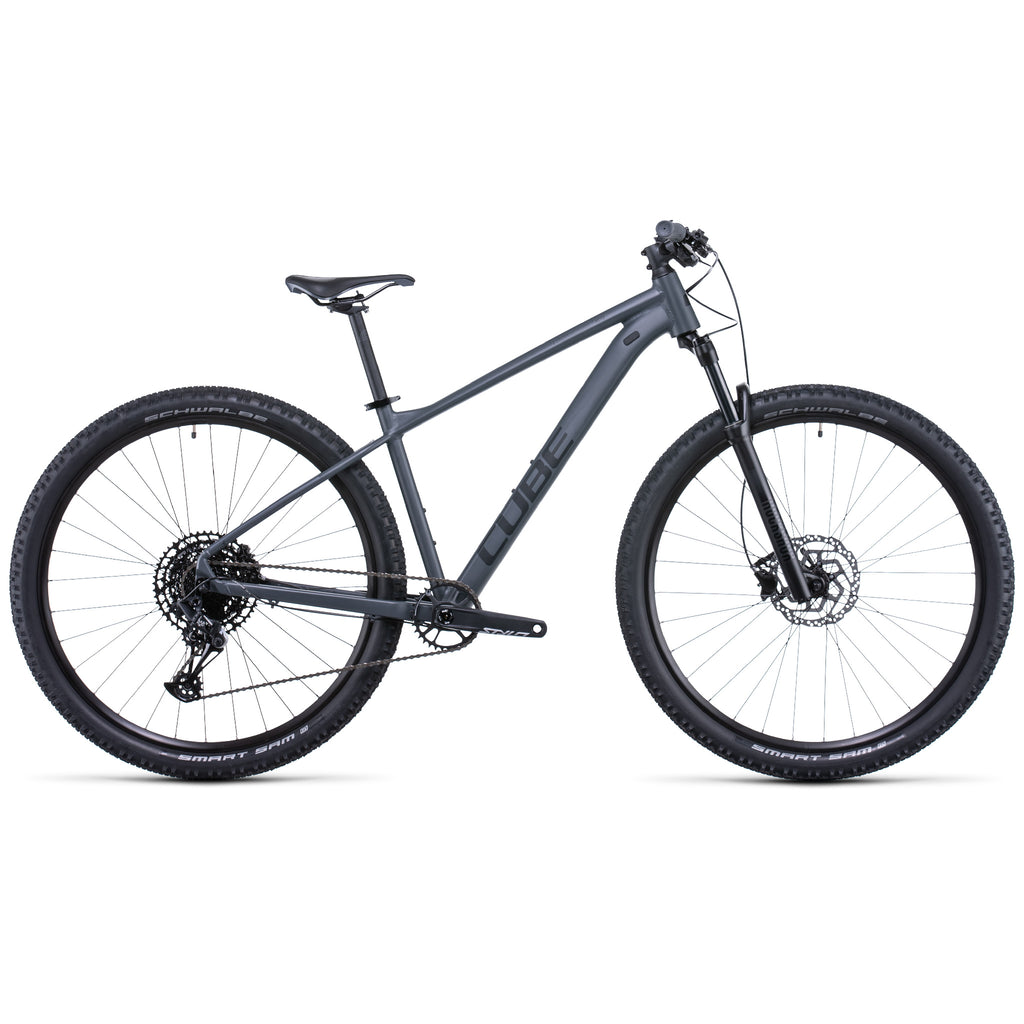

2022 CUBE Acid
Description
Completely revised for 2022, the brand-new Acid's sleek looks are thanks to its smooth-welded head tube and seat tube junctions.
It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.
Our SizeSplit system has an expanded range too, so however tall you are there'll be an Acid that fits perfectly. And, as your skills increase, there's scope to fit a dropper post upgrade.
SPECS
|
FRAME MATERIAL |
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
|
SIZES |
Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24") |
|
REAR SHOCK |
n/a |
|
FORK |
RockShox Judy Silver TK AIR, 100mm, PopLoc |
|
CRANKARMS |
Sram Stylo Eagle DUB, 32T |
|
CHAINRINGS |
32t |
|
B/B |
Sram DUB MTB, 73mm BSA |
|
PEDALS |
n/a |
|
CHAIN |
Sram SX Eagle™ |
|
CASSETTE |
Sram PG-1210 Eagle™, 11-50T |
|
CHAINGUIDE |
n/a |
|
F/D |
n/a |
|
R/D |
Sram NX Eagle™, 12-Speed |
|
SHIFTERS |
Sram NX Eagle™ Trigger |
|
BRAKE CALIPERS |
Shimano BR-MT200/UR300 |
|
FRONT BRAKE ROTOR |
Shimano 180mm |
|
REAR BRAKE ROTOR |
Shimano 160mm |
|
BRAKE LEVERS |
Shimano BR-MT200/UR300 |
|
HEADSET |
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated |
|
HANDLEBAR |
CUBE Rise Trail Bar, 680mm |
|
STEM |
CUBE Performance Stem SL, 31.8mm |
|
SEATPOST |
CUBE Performance Post, 27.2mm |
|
SEAT CLAMP |
CUBE Varioclose, 31.8mm
|
|
GRIPS |
ACID React |
|
SADDLE |
Natural Fit Venec |
|
FRONT HUB |
Shimano Deore HB-M6000, QR, Centerlock |
|
REAR HUB |
Shimano Deore FH-M6000 ,QR, Centerlock |
|
SPOKES |
- |
|
RIMS |
CUBE ZX20, 32H, Disc |
|
FRONT TIRE |
Schwalbe Smart Sam, Active, 2.25 |
|
REAR TIRE |
Schwalbe Smart Sam, Active, 2.25 |
|
PAINT COLOR |
White-Black / Grey-Grey |
|
EXTRAS |
n/a |
| MODEL YEAR | 2022 |
