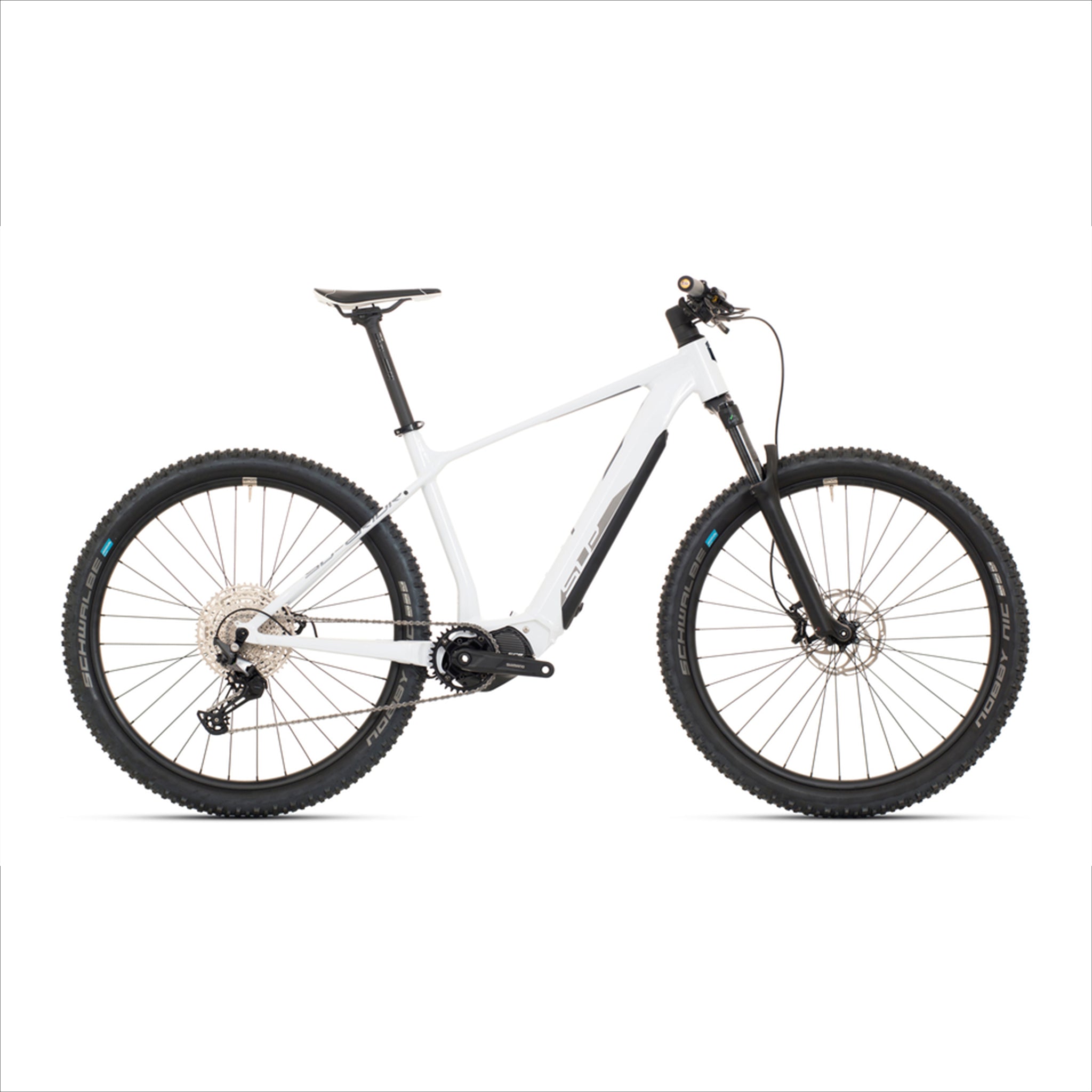

2021 Superior eXP9019
Description
A hardtail e-bike featuring a fully integrated battery and a Shimano EP8 motor to deliver a higher power with a superb ride feeling.
The clean design and internal cable routing are the true trademarks of the model.
Triple butter aluminium alloy X6 enabled us to reduce the weight and to integrate the battery into the frame without losing torsional stiffness.
The powerful propulsion, superior capacity battery, and 1x12 gear setup all open the unseen horizons of mountain biking. Enjoy the smart details, including the wide tires to guide you through the toughest muddy terrain, Block Lock headset to prevent frame damage by handlebars, integrated chainstay protector, or two bottle cages option.
SPECS
|
FRAME MATERIAL |
Alu X6 Ultralite, Advanced eMTB Geometry, SHIMANO STEPS ready, Integrated battery, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready |
|
SIZES |
XS, S, M, L, XL |
|
REAR SHOCK |
n/a |
|
FORK |
RockShox 35 Silver TK, Tapered, SoloAir, 15x110mm axle, 120mm travel |
|
CRANKARMS |
SHIMANO FC-E8000 |
|
CHAINRINGS |
34T |
|
B/B |
n/a |
|
PEDALS |
n/a |
|
CHAIN |
SHIMANO DEORE CN-M6100 |
|
CASSETTE |
SHIMANO CS-M6100-12, 10-51T |
|
CHAINGUIDE |
n/a |
|
F/D |
n/a |
|
R/D |
SHIMANO DEORE RD-M6100 Shadow Plus |
|
SHIFTERS |
HIMANO DEORE SL-M6100-R RapidFire Plus, 12-speed |
|
BRAKE CALIPERS |
TEKTRO HD-M745, hydraulic disc brake |
|
FRONT BRAKE ROTOR |
|
|
REAR BRAKE ROTOR |
|
|
BRAKE LEVERS |
TEKTRO HD-M745, hydraulic disc brake |
|
HEADSET |
ACROS AZX-596, ZS56/28.6 | ZS56/40; BlockLock 120° |
|
HANDLEBAR |
ONE1 Alloy, MTB AL-320BT, 3° upsweep, 9° backsweep, 20mm rise, 760mm, 31.8mm |
|
STEM |
ONE1 TDS-661 Alloy, 31.8mm, 0° |
|
SEATPOST |
ONE1 Race Alloy, SP 218, 30.9mm |
|
SEAT CLAMP |
|
|
GRIPS |
ONE1 VLG-1907D2, ONE1 VLG-1962-11D2, Lock-On |
|
SADDLE |
fizik Taiga |
|
FRONT HUB |
SHIMANO HB-MT410-B, 32H, CENTER LOCK, 15x110mm THRU Type AXLE |
|
REAR HUB |
SHIMANO FH-MT410-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE |
|
SPOKES |
Sapim Leader, Stainless Black |
|
RIMS |
Stars J30D, 32H |
|
FRONT TIRE |
Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip |
|
REAR TIRE |
Schwalbe Nobby Nic Evo Super Trail, 29x2.60", ADDIX Speedgrip |
|
PAINT COLOR |
Gloss White/Chrome Silver |
|
EXTRAS |
n/a |
EBIKE
|
DRIVE UNIT |
Shimano EP8 250 W Motor: 85 Nm, low noise, high performance |
|
BATTERY |
DARFON, 36V, 504 Wh, integrated |
|
DISPLAY |
SHIMANO SC-EM800, Clamp band |
